Viscosity measurements

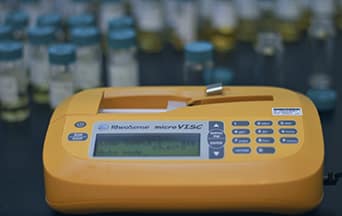

MicroVISC-m only requires a small liquid sample size to measure viscosity. This unit has microfluidic sensors that measure viscosity by the drop in pressure while the sample flows through a small rectangular flow channel. MicroVISC-m viscometer is widely recognized in the industry as the fast MicroVISC-m™ solution:
- Requires as little as 100μL of sample
- Offers a remarkably wide dynamic viscosity range
- Achieves exceptionally high and low shear rates
- Automated testing for rapid results
- Prevents film forming, evaporation, and
contamination
Measures both Newtonian and non-Newtonian
fluids easily - It has a very small footprint
- Delivers extraordinary precision and accuracy, the easiest and most cost-effective way to determine the viscosity of a liquid.
VISCOMETER SPECIFICATIONS
| Minimum Sample Volume | 100 μL |
|---|---|
| Viscosity Range | 0-20,000 cPs;Depends on the chip |
| Operating Range | 18 – 40 °C |
| Output Range | 20 – 100 °C |
| Humidity Range | 0 ~ 90%, Non-condensing |
| Accuracy | ~+/- 2% Reading |
| Repeatability | ~+/- 0.5% Reading |
| Influence of reactive gases | <1 min |
| Standards | Correlates to ASTM D445 |
